OC-tech VESSELS

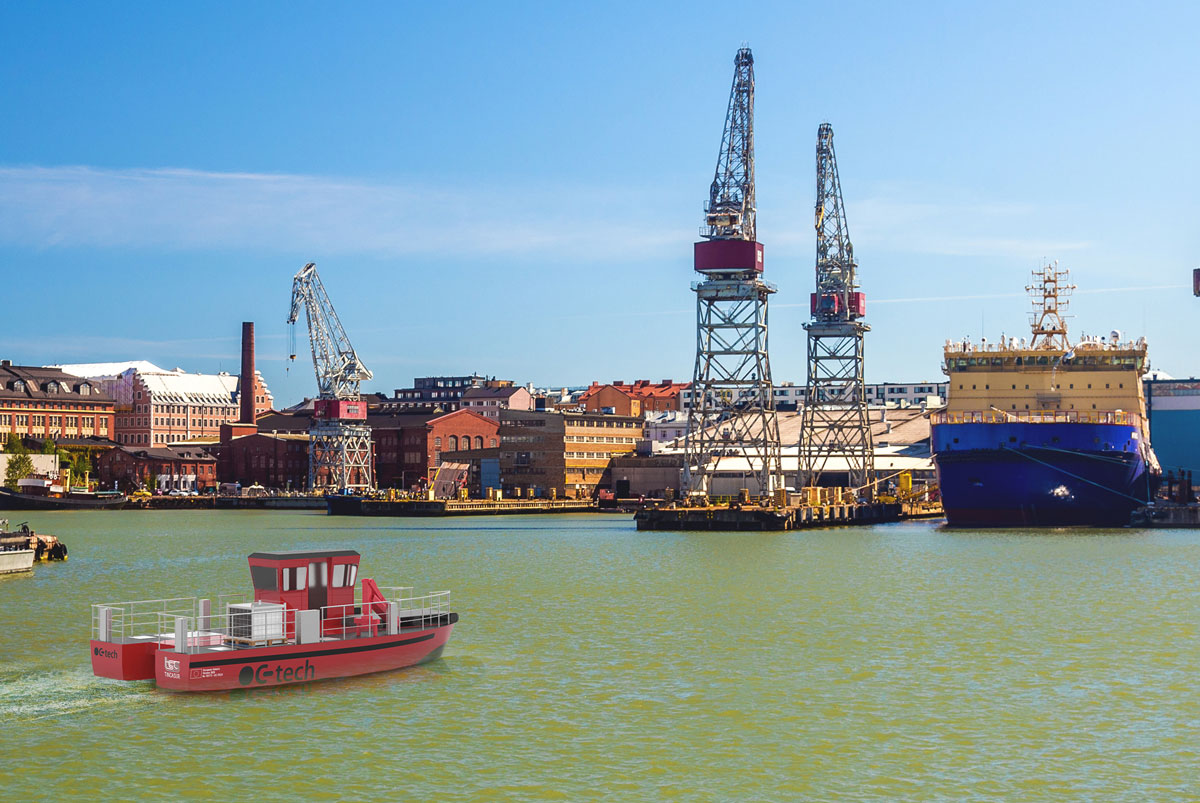

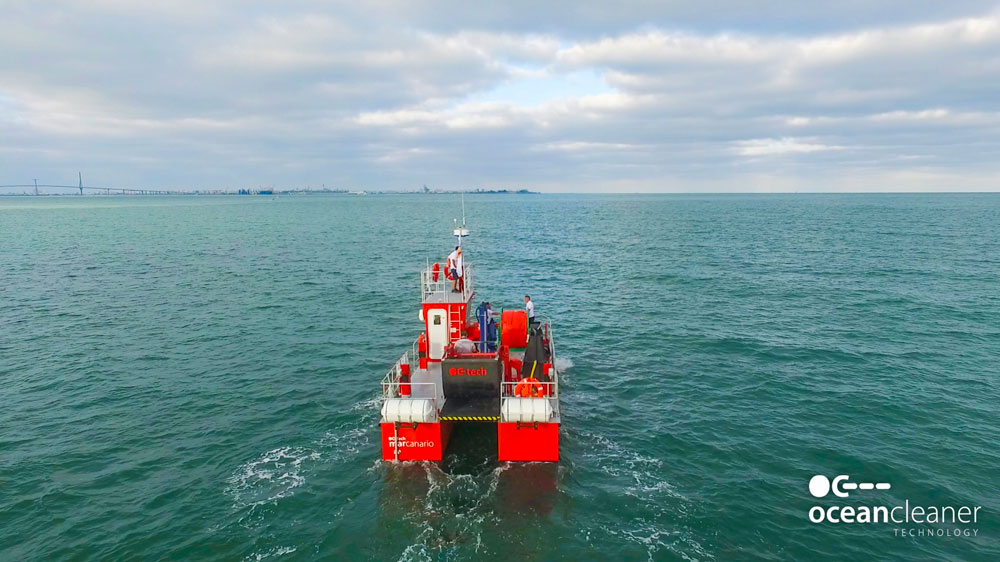

All the OC-TECH boats are catamaran-type vessels and are highly profitable and ecological business tools because they are as versatile as Swiss army knives, operating in port, coastal or river environments:

  1. As a work vessel, the OC-TECH is perfect for transporting people or cargo, placing barriers or supplying ships, thanks to its wide diaphanous roof.

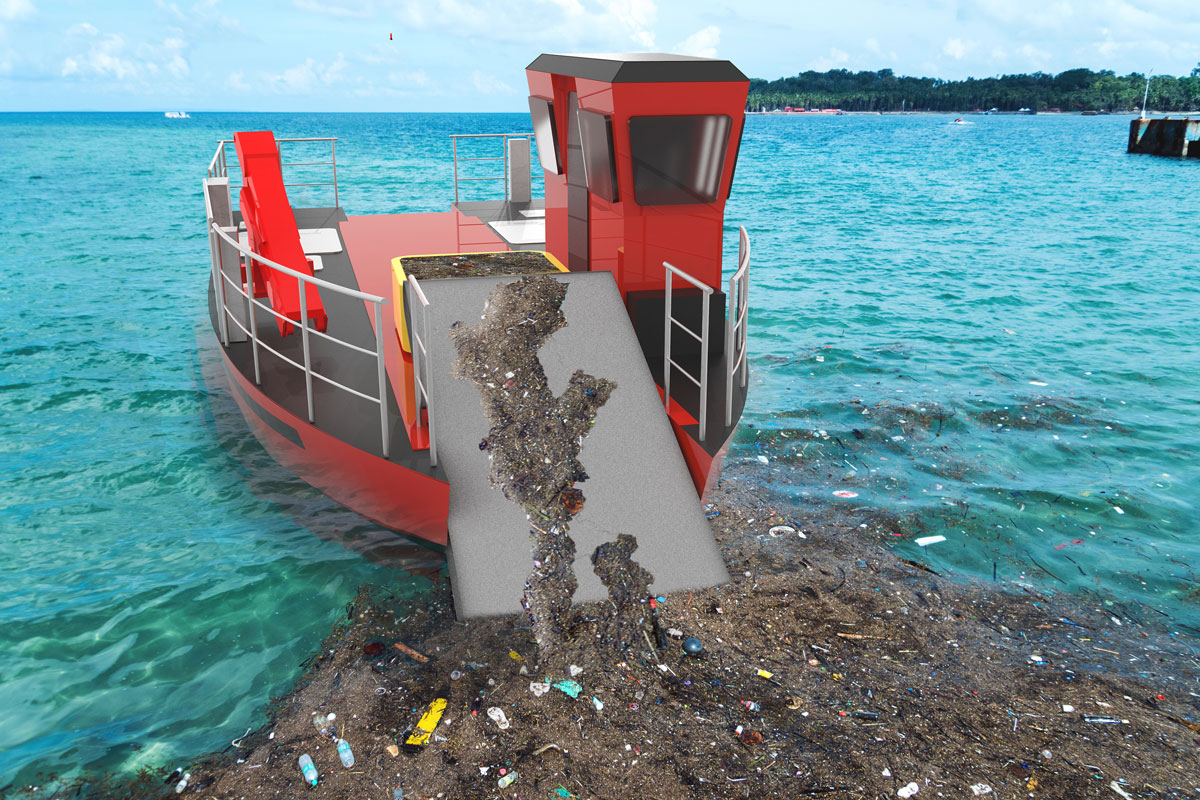

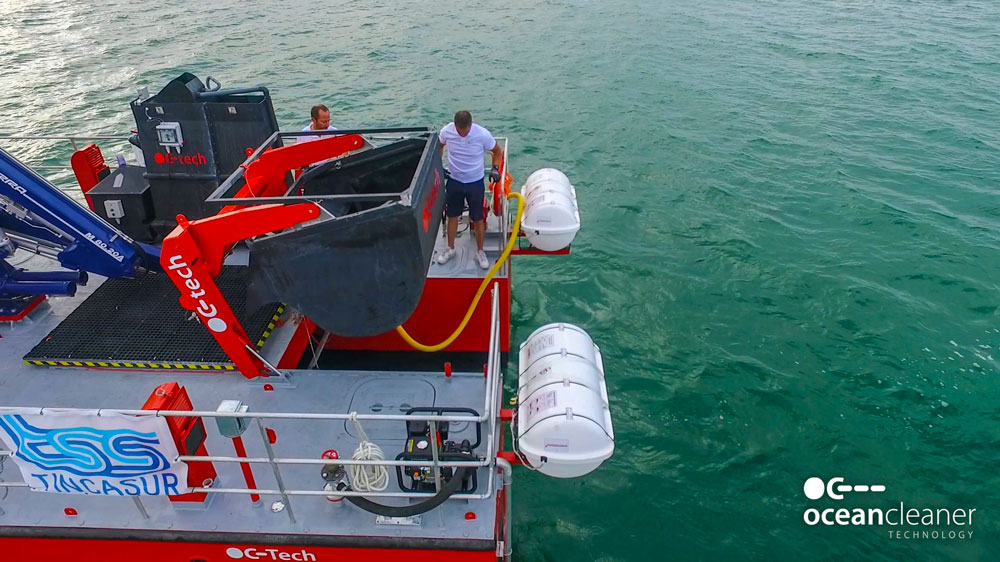

  2. As a cleaning vessel, the OC-TECH collects pollutants and floating marine debris separately thanks to its patented cleaning system.

The OC-TECH vessel can be sized and fitted with tools according to the needs of the client.

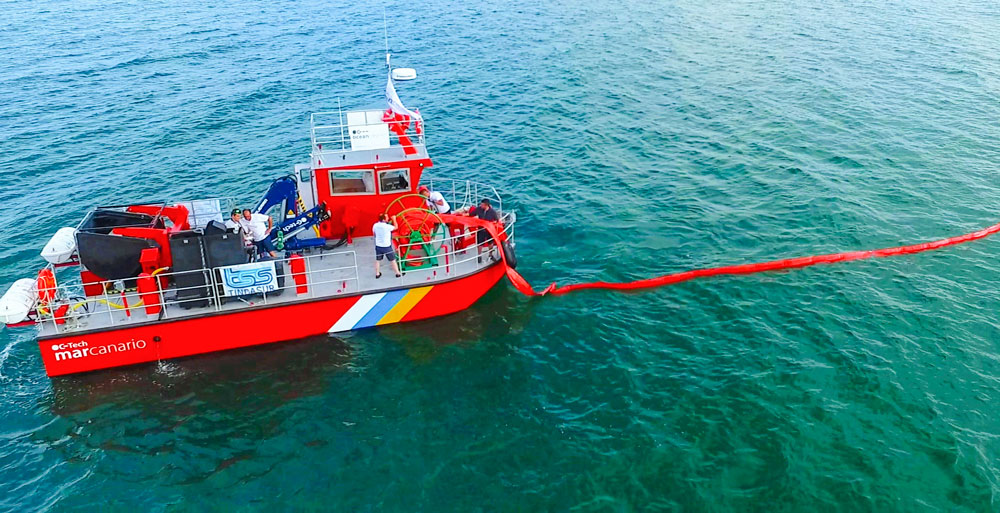

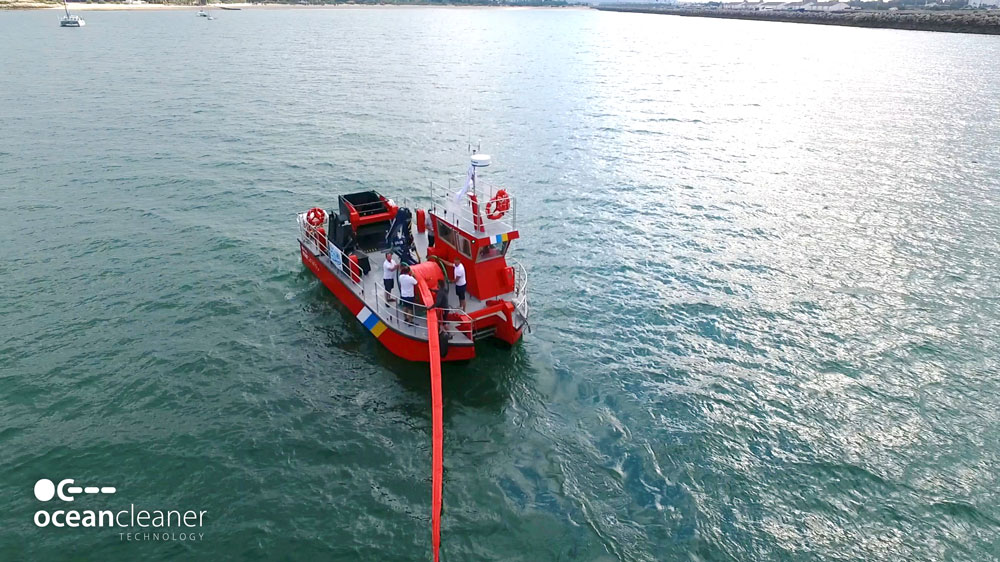

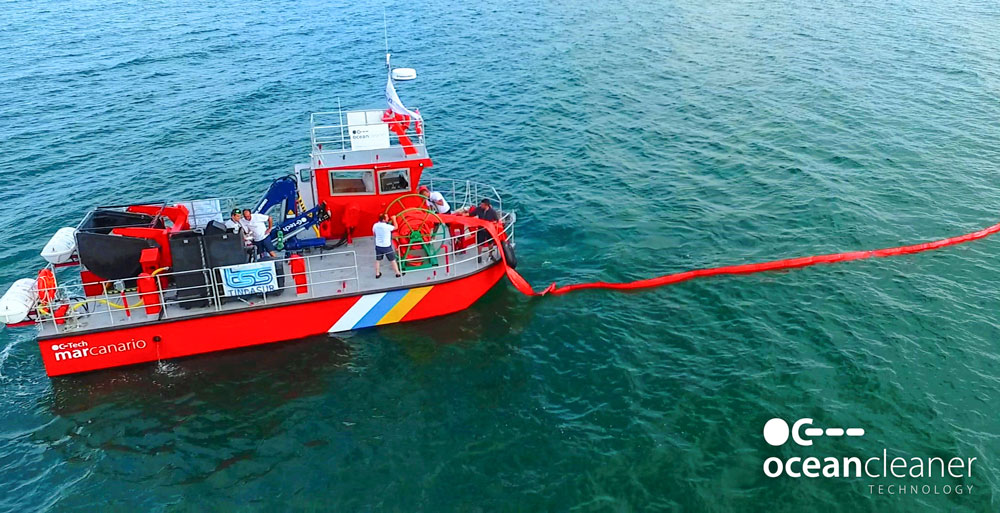

All OC-TECH vessels are equipped to collect oil spills, microalgae or microplastics and remove any floating marine debris such as plastic waste and packaging, as well as store the pollutants and litter collected from the sea separately and continuously.

The first OC-TECH models that are being built are the OC-TECH HORIZON and the OC-TECH HABITAT.

Both are catamaran-type vessels built in aluminium, classified as Group III, class T (offshore port service vessel), with motor propulsion, designed to carry out oil cleaning operations and solid waste collection.

Fitted to navigate and operate in open waters up to 20 miles from harbour and with waves up to one meter in height.

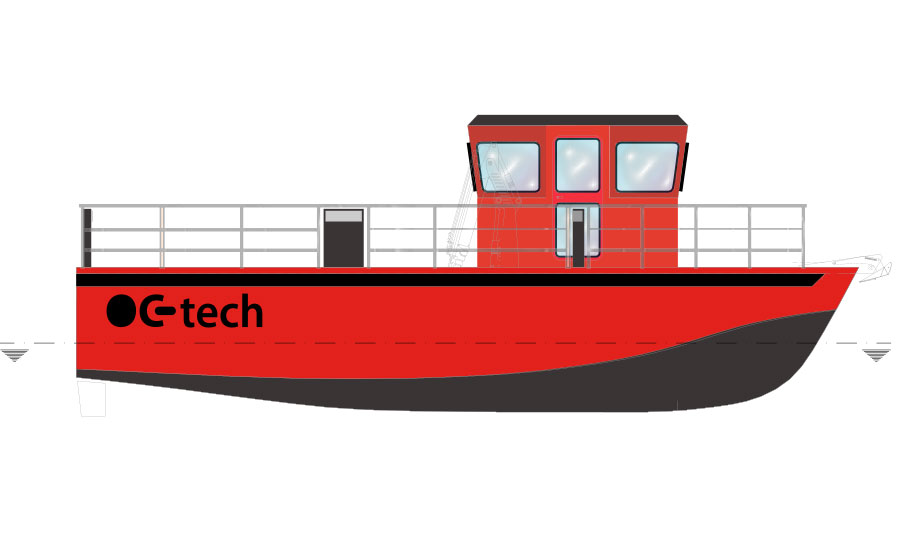

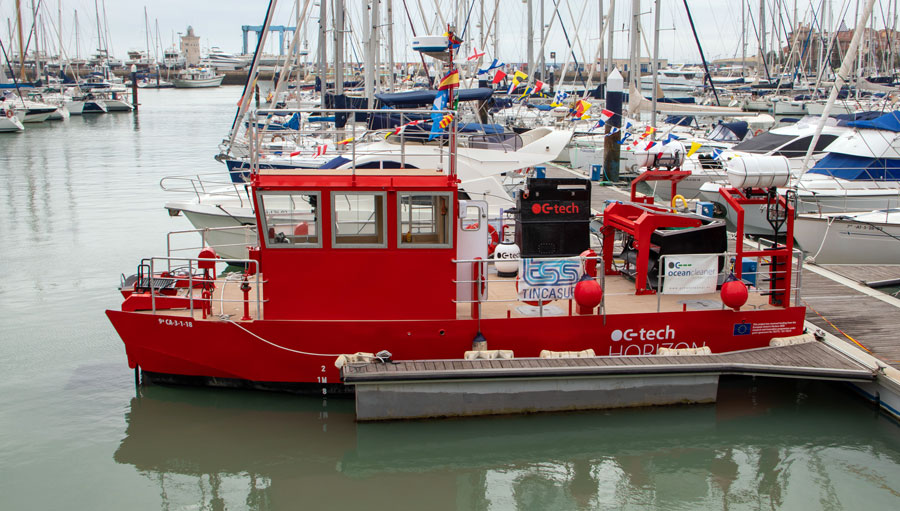

OC-TECH HORIZON

MULTITASK

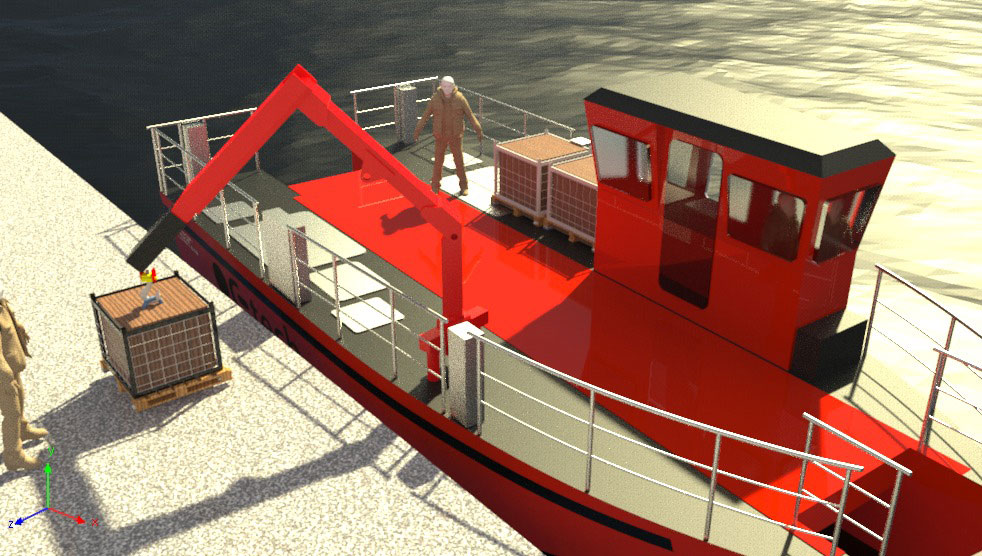

The vessel will be used to clean up pollutants and floating marine litter, as a tool to carry out R&D projects and environmental studies, as well as for on-deck transport of pallet cargo or as a loading platform for maritime works.

OC-TECH HORIZON Specifications

  • Total length 11.65 m
  • Beam 5.00 m
  • Maximum draft 1.00 m
  • Summer freeboard 1.00 m
  • Maximum load displacement 19.4 tn
  • Length between perpendiculars 10.74 m
  • Height 2.00 m
  • Scantling draft 1.00 m
  • Deck capacity 18 American pallets (120 x 100 cm)
  • Gross tonnage 15 GT

OC-TECH HORIZON PROPULSION

2 CUMMINS QSB6.7-250 Heavy Duty engines (5000 hours per year). Rating: 250 mhp at 2600 rpm Heavy Duty (5000 hours per year, 2 years warranty for professional use).



OC-TECH HORIZON EXTRA FEATURES

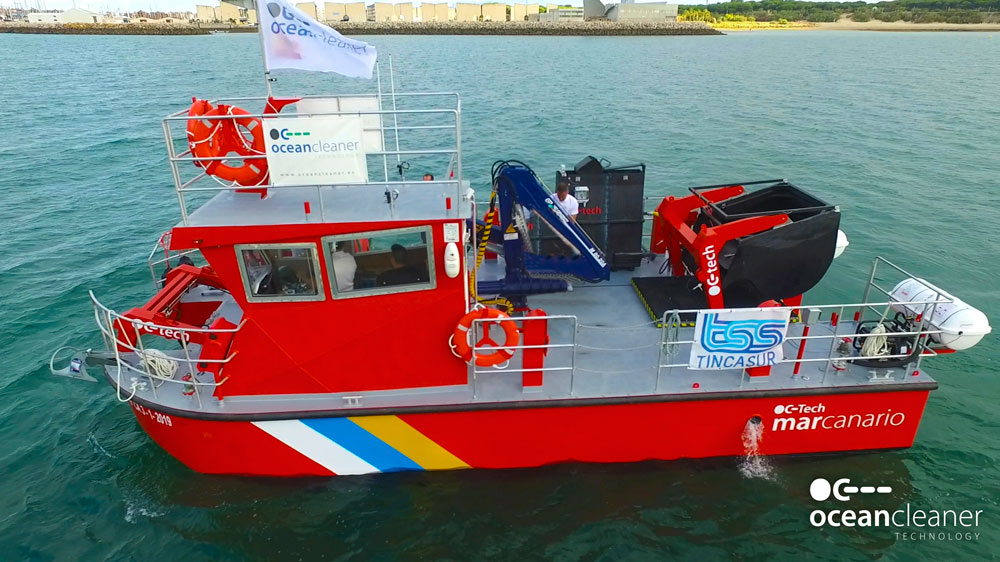

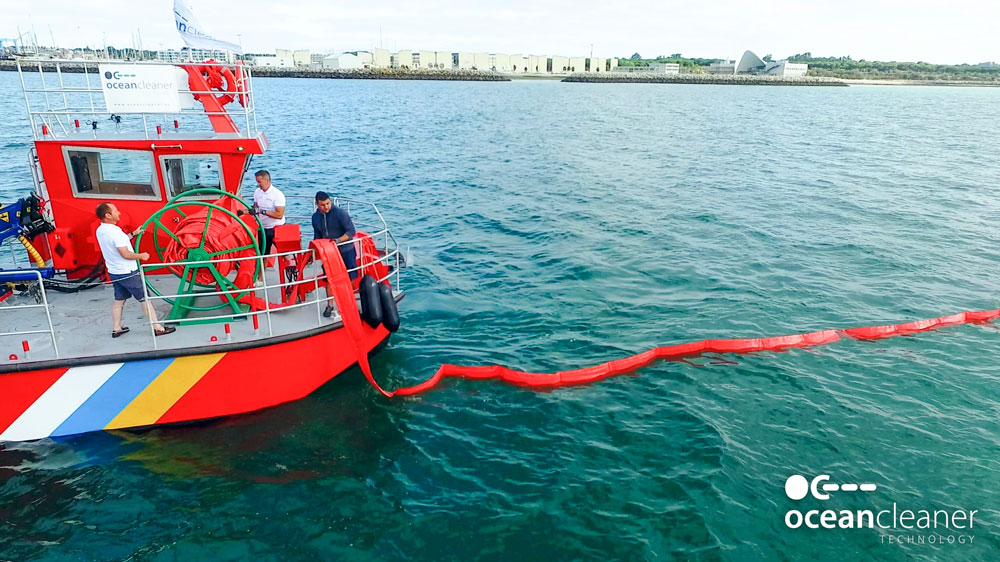

Marine barriers to contain spillages, sea crane, solid waste collection deposit, diving platform, floating auxiliary tank.

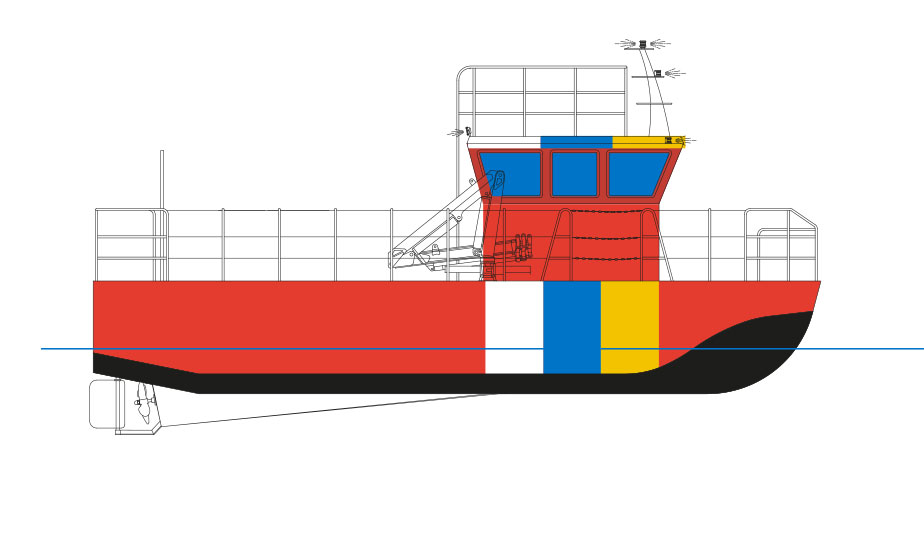

OC-TECH HABITAT

MULTITASK

This vessel will be used for marine habitat monitoring, cleaning pollutants and floating marine litter, as a tool for conducting oceanographic studies, as well as for on-deck transport of pallet cargo.

OC-TECH HABITAT Specifications

  • Total length 10.40 m
  • Beam 4.50 m
  • Maximum draft 0.60 m
  • Summer freeboard 1.00 m
  • Maximum load displacement 10.89 tn
  • Length between perpendiculars 9.94 m
  • Height 1.60 m
  • Scantling draft 0.70 m
  • Deck capacity 12 American pallets (120×100 100 cm)
  • Gross register tonnage: 12.26 GRT

OC-TECH HORIZON PROPULSION

2 John Deere 4045TFM50 40 HP propulsion engines.



OC-TECH HORIZON EXTRA FEATURES

ROV, marine spill containment barriers, sea crane, continuous solid waste collection, diving platform, habitat monitoring platform on the bridge, floating auxiliary tank.

COMPARISON CHART

OC-Tech Horizon vs OC-Tech Habitat



RIO VESSEL: RIVER-TECH

Features OC-TECH HORIZON OC-TECH HÁBITAT
Material    Aluminum    Aluminum
Classification Work vessel Group III, class T Group III, class T

Total length

11,65 m 10,40 m
Beam 5,00 m 4,50 m
Maximum draft 1,00 m 0,60 m
Summer freeboard 1,00 m 1,00 m

Maximum load displacement

19,4 tn 10,89 tn

Length between perpendiculars

10,74 m 9,94 m
Height 2,00 m 1,60 m
Scantling draft 1,00 m 0,70 m
American pallet load capacity (120×100 cms) 18 12
Gross register tonnage 15 GT 12,26 TRB
Propulsion 2 CUMMINS QSB6.7-250 engines 2 JOHN DEERE 4045TFM50 engines
Power 2 x 250 HP engines 2 x 150 HP engines
OC-TECH cleaning system

YES

YES

OC-TECH concentrator system

YES

 YES
Waste cleaning system Up to 3 knots Up to 3 knots
Continuous solid waste collection
YES
YES
Sea crane YES YES
Habitat monitoring platform NO YES

Diving platform

YES YES
Marine containment barriers YES YES
ROV NO YES
Floating auxiliary tank YES YES

Patented Project

This work vessel can be sized and fitted with tools according to the needs of the client.

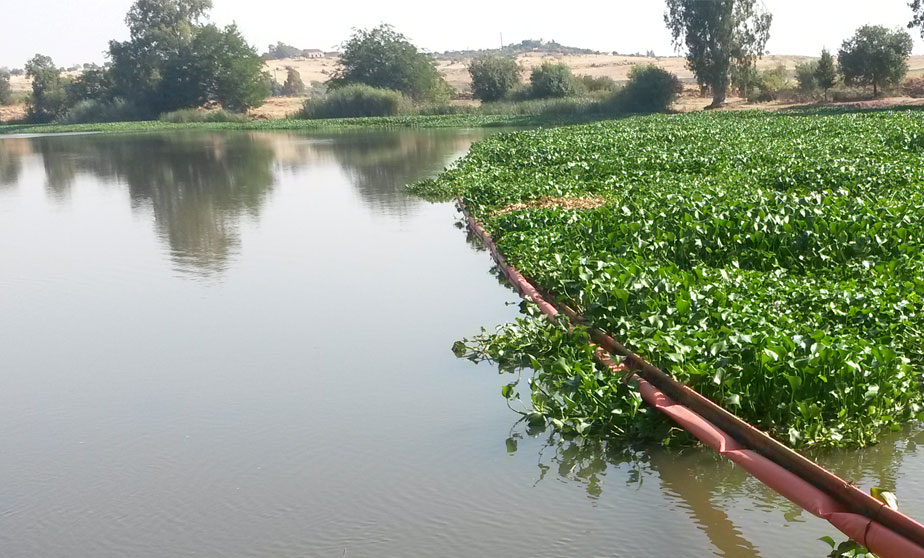

RIVER-TECH vessels are designed to collect and remove any floating marine litter from rivers, such as floating plastic waste and packaging, and are also equipped to combat invasive river plants such as water lilies or river hyacinths with units specially devised to deal with invasive aquatic plants.

Estimated specifications PATENTED RIVER-TECH PROJECT
Material Fibreglass
Work vessel YES
Total length 10 m
Beam 5,00 m
Power 2 x 75 HP engines
Loading capacity 20 Tn
Cleaning speed 1 Knot
Floating marine waste collection band YES
Floating marine waste treatment system YES
Floating marine waste retrieval system YES
Invasive aquatic plant collection band YES
Invasive aquatic plant treatment system YES
Invasive aquatic plant retrieval system YES
